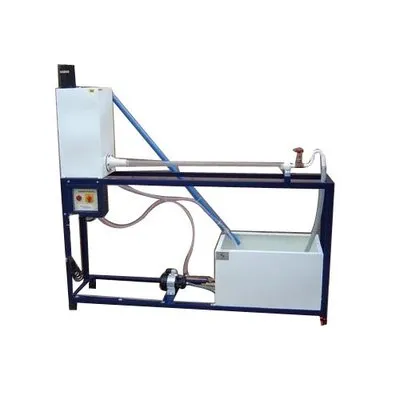

REYNOLD`S APPARATUS WITH S.S. TANK - VIPL - FM - 7003
Model Number : EIE-FM-003
Reynolds's Number is a dimension less number used by engineers to determine type of Fluid Flow. Detailed Specification as mention in following page.
Construction Details :
Apparatus consists of a constant head tank and a small ‘dye’ tank. The constant head tank has a vertical transparent tube with a flow control valve at the discharge side. The velocity of water is varied by the flow control valve. When the dye is introduced then laminar or turbulent nature of the flow can be visualized.
Piping with necessary Valves and Fittings
Digital Stop Watch with 1/100 second Accuracy can be supplied at extra cost
Detailed Technical Manual supplied. However, On‑site Training available at extra cost
Range of experiments : To determine the Reynolds's number and hence the type of flow either Laminar or turbulent.
| Dye Vessel Material | Acrylic |
|---|---|
| Dye Material | Potassium Permanganate |
| Constant Head Tank Capacity | 10 liter |
| MOC of Constant head tank | Acrylic |
| Sump tank capacity | 60 liters |
| MOC of Sump tank Flow Visualization Tube | SS-304 with Matt Buffing |
| Made of Acrylic (transparent) | |
| Flow Pipe Length | 700 mm (acrylic) |
| Measuring Flask | 1 liter |
| Stop Watch | Digital Stop Watch |
| Water Circulating Pump | Motor 0.5 HP, Mono Block type, 0-60Lpm |
